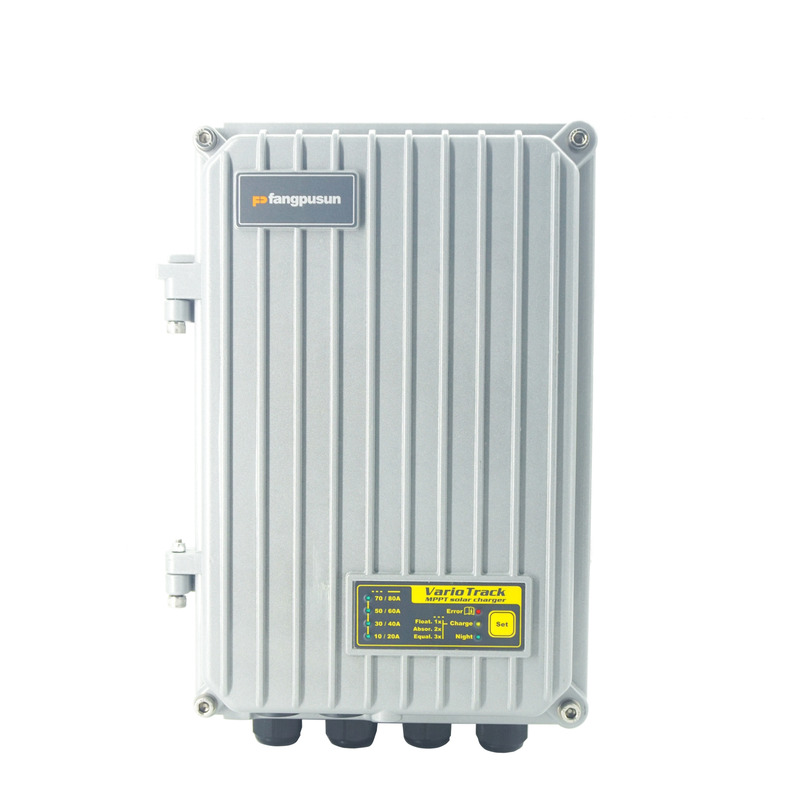

Charger Controller Fangpusun 150v Studer Variotrack VT 65 Mppt Solar Controller

1 Piece
MOQ
$257.57(>=1 Pieces)
Prix
Charger Controller Fangpusun 150v Studer Variotrack VT 65 Mppt Solar Controller
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: VT-65
Type: MPPT
Application: Charger Controller, Collector Controller, Solar Working Station, Voltage Controller, Solar System Controller, Solar Charge Controller
Work Time (h): Always
Max PV Power: 5000 Watts
Max PV Voltage: 150VOC
Certificate: CE , IEC , SGS , RoHs , ISO 9001
Warranty: 2 Years, 2 Years
Key words: Mppt Solar Controller
Nominal Battery Voltage: 12v 24v 48v
Maximum Output Current: 65 amps
PV Open circuit Voltage(VOC): 150VDC
Maximum Solar Power in 12v: 1000w
Maximum Solar Power in 24v: 2000w
Maximum Solar Power in 48v: 4000w
Power Conversion Efficiency: 99%
Parallel Operation: up to 15 devices
Informations de base
Certification: CE , IEC , SGS , RoHs , ISO 9001
Model Number: VT-65
Conditions de paiement et expédition
Packaging Details: 7kgs/pcs
Supply Ability: 1000 Unit/Units per Month
Description de produit
Fangpusun
Fangpusun 150v Studer Variotrack vt 65 Mppt Solar Controller
Product Description

The VarioTrack family consists of 3 models of MPPT solar charge controllers for systems with solar PV capacity from 0.6 - 75kWp(with 15 in parallel), a PV input voltage up to 150Vdc, and 12, 24 or 48V battery banks.

With the MPPT solar charge controllers of the VarioTrack series, each installation is the best it can be with a maximized battery life due to an optimal charge.


Efficient
A VarioTrack charge controller utilises a sophisticated algorithm that ensures the maximum available power from the solar PV modules is delivered to the batteries.

Robust
The device meets the highest industry standards, and due to the high ingress protection rating (IP54), it is especially robust and well suited for difficult environments. In addition, it is fully protected against reversed polarity.

Flexible
The VarioTrack is designed to be used in all types of solar systems, and the combination of the VarioTrack + Xtender results in a highly efficient system. The communication between the devices permits the synchronisation of the battery charge cycle regardless of the technology (lead acid, lithium, nickel, etc...). Unlike other all-in-one hybrid solutions, the VarioTrack + Xtender allows to independently select the appropriate capacity of solar PV and inverter-charger, resulting in a more finely tuned system design.
Features and performances

 * Ensures an optimal energy production
* Tracking efficiency: >99%
* Conversion efficiency: >97%
* 4 step charger for longer battery life
* 8 predefined battery charge curves as standard
* Free programming of the battery's load curve with the RCC-02/-03
* Low self-consumption: <1W in night mode
* Protection against incorrect wiring
* Protection against reverse polarity
* Fully configurable
* IP54 enclosure
* Comprehensive display, programming and data logging with the RCC-02/-03
* Up to 15 VarioTrack in parallel on the same communication bus
* Communication sets with Xcom-LAN, Xcom-GSM, Xcom-SMS (opt.)
* Compatible with all PV systems
* Optimal usage in an Xtender system with a synchronized battery management
Product Parameters
Model
VT-65
Electrical characteristics PV array side
At nominal battery voltage
12V
24V
48V
Maximum solar power recommended (@STC)
1000W
2000W
4000W
Maximum solar open circuit voltage
75V
150V
Maximum solar functional circuit voltage
75V
145V
Minimum solar functional circuit voltage
Above battery voltage
Electrical characteristics battery side
Maximum output current
65 A
Nominal battery voltages
Automatic / manual set to 12, 24 or 48 V
Operating voltage range
7 - 68 V
Performances of the device
Power conversion efficiency (in a 48 V typical-system)
> 99 %
Maximum stand-by self-consumption (48 V)
25 mA > 1.2 W
Maximum stand-by self-consumption (24 V)
30 mA > 0.8 W
Maximum stand-by self-consumption (12 V)
35 mA > 0.5 W
Charging stages
4 stages: Bulk, Absorption, Float, Equalization
Battery temperature compensation (available with accessory BTS-01)
–3 mV /°C /cell (25°C ref) default value adjustable -8 to 0 mV /°C
Electronic protections
PV reverse polarity
Up to –150 V
Battery reverse polarity
Up to –150 V
Battery overvoltage
Up to 150 V
Over temperature
Protected
Reverse current at night
Prevented by relays
Environment
Operating ambient temperature range
–20 to 55°C
Humidity
100 %
Ingress protection of enclosures
IP54, IEC/EN 60529:2001
Mounting location
indoor
General data
Warranty
2 Years
ISO Certification
9001:2008 / 14001:2004
Weight
5.2 kg
Dimensions h/w/l [mm]
120 / 220 / 310
Parallel operation (separated PV arrays)
Up to 15 devices
Max wire size
35 m㎡
Glands
M 20 × 1,5
Communication
Network cabling
STUDER communication BUS
Remote control & Communication
RCC-02/-03, Xcom-232i / Xcom-LAN / Xcom-GSM / Xcom-SMS
Menu languages
English / French / German / Spanish
Data logging
With RCC-02/03, Xcom-232i on SD card · One point every minute
Accordance to standards
EU declaration of conformity
Low Voltage Directive (LVD) 2014/35/EU:
- EN 50178:1997
Electromagnetic Compliance (EMC) Directive 2014/30/EU:
- EN 61000-6-2:2005, - EN 61000-6-4:2007/A1:2011
Accessories
Remote control RCC-02 or RCC-03
●
Module Xcom-232i
●
Communication sets Xcom-LAN / Xcom-GSM / Xcom-SMS
●
Battery Status Processor BSP
●
2 aux. contacts module ARM-02
●
Cooling Module ECF-01
●
Battery temp. sensor BTS-01 (3 m)
●
Communication cable CAB-RJ45-8-2
●
Product Details

Fangpusun 150v Studer Variotrack vt 65 Mppt Solar Controller

Product Packing
Why Choose Us

About us

We are specializing in researching , developing , manufacturing and marketing of solar energy products .The company has a group of senior professional technical and management personnel , formed a set of science , industry and trade as one of the operating system.

Equipment & technology

Our company owns modern production lines and high technology quality controlling equipment , with scientific adminstration , professional engineers , highly trained technicians and skilled workers produc high quality solar system items yearly , such as Solar charge controller , Off-grid Inverters , Grid-connected Inverters and special power units etc.,

Service

A) 2 Years Warranty .
B) More than 15 years experience in the solar energy field .
C) Help you plan your solar system , Solve the problem of your installation.
D) OEM Service , can help you design your own Brand .
