Aperçu /Produits/Invertisseur pour véhicules électriques/Solar Power System Home Appliances 5000va AC Inverter Charging Display Off Grid Modified Sine Wave Inverter With Complementary Charging Lines

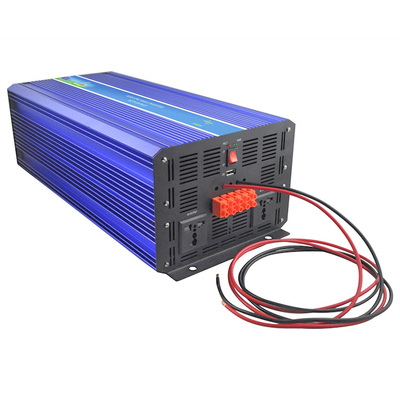

Solar Power System Home Appliances 5000va AC Inverter Charging Display Off Grid Modified Sine Wave Inverter With Complementary Charging Lines

1 Set
MOQ
$377.00(1 - 99 Sets) $375.00(100 - 499 Sets) $370.00(>=500 Sets)
Prix
Solar Power System Home Appliances 5000va AC Inverter Charging Display Off Grid Modified Sine Wave Inverter With Complementary Charging Lines
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Network: OFF GRID
Customized support: OEM
Model Number: CZ-5000H
Type: DC/AC Inverters
Output Type: Single
Output Current: 1A
Output Frequency: 50/60HZ
Size: 600*217*153mm
Weight: 14.5Kg
Product name: Domestic power inverter pure sine wave 5000w dc to ac 12v 24v 48v
Warranty: 2 years
Protection: Overload
Rated power: 5000W
Output waveform: Pure Sine Wave Output
Efficiency: High Efficiency
Certificate: CE ROHS
Display: LCD Screen
Application: Solar Power System Home
Inverter type: Off-grid Inverter
Informations de base
Certification: CE ROHS
Model Number: CZ-5000H
Conditions de paiement et expédition
Description de produit
Welcome

Honest marketing
1. 100% full power of the product.
2. Six intelligent protection functions to protect your safety.
3. The enterprise has passed ISO9001, RoHS and other certification.
4. The products have passed CE, FCC and other certification.
5. The product has obtained more than 20 patents.
6. Source enterprises, direct sales of manufacturers.
The engineering and technical team will tailor your exclusive products for you.

Product Description

Pure Sine Wave Inverter 150W-6000W, LED/LCD digital display, 2times peak power,high frequency type with transformer. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

Model CZ-5000H
Input DC voltage 12V 24V  48V   96V  110V
Voltage range 10-15.5VDC 20-30VDC 40-60VDC 80-120VDC 90-135VDC
No load current draw 3A 1.5A 0.8A 0.4A 0.4A
Efficiency > 90%
Output AC voltage 100/110/120VAC or 220/230/240 VAC
Continuous power 5000W
Surge power 10000W
Waveform Pure sine wave
Frequency 50Hz or 60Hz
USB Output 5VDC 1A
AC regulation 3%
Protection Low voltage alarm 10.5DC±0.5V 21DC±1V 42VDC±1V 84DC±2V 96VDC±3V
Low voltage shut down 10DC±0.5V 20DC±1V 40VDC±1V 80DC±2V 90VDC±3V
Short circuit Shut off output automatically
Over load Shut off output
Over voltage shut down 15.5±1V  30±1V  60±2V 120±3V 135±3V
Over thermal Shut off output automatically
Environment Working temperature  -10℃ and +50℃
Working humidity 20%~90%RH
Storage temperature   -30℃ ~ +70℃
Package Machine size(L*W*H)mm 600*217*153
Net weight KG 14.5
Gross weight KG 16.5
Packing size mm 685*300*230
Package quantity pcs 1
Outer packing size mm 710*330*280





Hot Products
Company Information



FAQ

Q:Are you a inverter directly factory or inverter trading company?
A:We are inverter manufacturer.

Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.

Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!

Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.

Q:Do you accept customized order?
A:Yes, we do.

Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
