Aperçu /Produits/outre de l'inverseur de grille/Hybrid Solar System On Grid Off Grid On / Off Grid Hybrid Inverter 5kw 10kw 20kw 30kw In Stock Hybrid Solar Inverter

Hybrid Solar System On Grid Off Grid On / Off Grid Hybrid Inverter 5kw 10kw 20kw 30kw In Stock Hybrid Solar Inverter

1 Piece
MOQ
$1,953.90(1 - 4 Pieces) $1,890.90(5 - 9 Pieces) $1,849.50(10 - 19 Pieces) $1,800.00(>=20 Pieces)
Prix
Hybrid Solar System On Grid Off Grid On / Off Grid Hybrid Inverter 5kw 10kw 20kw 30kw In Stock Hybrid Solar Inverter
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: SPH10000TL3 BH-UP
Input Voltage: 1000v
Output Voltage: 230V/400V
Output Current: 15.2A
Output Frequency: 50/60Hz
Output Type: Triple, Multiple
Size: 505/453/198mm
Type: DC/AC Inverters
Inverter Efficiency: 98.2
Certificate: CE TUV IEC VDE EN50549
Warranty: 5 years
Weight: 30KG
Product name: growatt hybrid inverter
Inverter type: hybrid solar inverter
Battery Voltage: 100-550v
Rated AC output power: 10000w
Application: Hybrid Solar System
Transfer Time: 10ms
Communication: WIFI/RS485/CAN
Max PV power: 15000w
Operation phase: Three Phase
Battery type: Lithium
Informations de base
Certification: CE TUV IEC VDE EN50549
Model Number: SPH10000TL3 BH-UP
Conditions de paiement et expédition
Packaging Details: Less than 5 pieces: Strong carton with foam and protect materials inside the box More than 5 pieces: Wooden pallet with strong carton box
Description de produit
Product Description

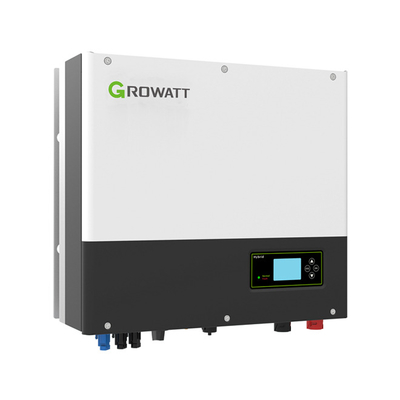

GROWATT HYBRID INVERTER
Model: SPH 4000-1000TL3 BH-UP
4-10KW HYBRID INVERTER THREE PHASE 230/400V GRID VOLTAGE
100-550V HIGH VOLTAGE BATTERY

IN STOCK NOW
FOR IMMEDIATE DELIVERY WITHIN 3 DAYS
CONTACT US FOR SHIPPING COST AND MORE DETAILS
Specification
GROWATT SPH 4000- SPH 10000TL3 BH-UP
Specification
SPH4000
TL3 BH-UP
SPH5000
TL3 BH-UP
SPH6000
TL3 BH-UP
SPH7000
TL3 BH-UP
SPH8000
TL3 BH-UP
SPH10000
TL3 BH-UP
Input data (PV)
Max PV power (STC)
6000W
7500W
9000W
10500W
12000W
15000W
Max DC voltage
1000V
Start voltage
120V
MPP Voltage range
120V-1000V/600V
No. of MPP trackers
2
No. of PV strings per MPP tracker
1
Max. input current per MPP tracker
13.5A
Max. short-circuit current per MPP tracker
16.9A
Output data(AC)
AC nominal power
4000W
5000W
6000W
7000W
8000W
10000W
Max. AC apparent power
4000VA
5000VA
6000VA
7000VA
8000VA
10000VA
Nominal AC voltage (range*)
230V/400V (310~476V)
AC grid frequency (range)
50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max. output current
6.1A
7.6A
9.1A
10.6A
12.1A
15.2A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W+N+PE
Battery data (DC)
Battery voltage range
100~550V
Max charging and discharging current
25A
Continuous charging and discharging powe
4000W
5000W
6000W
7000W
8000W
10000W
Type of battery
Lithium battery
Backup power(AC)
Max. AC output power
4000W
5000W
6000W
7000W
8000W
10000W
Max. AC apparent power
4000VA
5000VA
6000VA
7000VA
8000VA
10000VA
Max. output current
6.1A
7.6A
9.1A
10.6A
12.1A
15.2A
Nominal AC output voltage
230V/400V
Nominal AC output frequency
50/60HZ
THDv
<3%
Switch time
<10ms
Efficiency
MAX. efficiency
97.6%
97.8%
98.0%
98.2%
98.2%
98.2%
European efficiency
97.0%
97.2%
97.3%
97.4%
97.4%
97.5%
Protection devices
DC switch
Yes
DC reverse polarity protection
Yes
AC/DC surge protection
Type II
Battery reverse protection
Yes
AC short-circuit protection
Yes
Ground fault monitoring
Yes
Grid monitoring
Yes
Anti-islanding protection
Yes
Residual-current monitoring unit
Yes
Insulation resistance monitoring
Yes
General data
Dimensions (W / H / D)
505/453/198mm
Weight
30kg
Operating temperature range
–25 °C ... +60 °C
Nighttime power consumption
<13W
Topology
Transformerless
Cooling
Natura
Protection degree
IP65
Relative humidity
0~100%
Altitude
3000m
DC connection
H4 / MC4 (Optional )
AC connection
Connector
Display
LCD+LED
Interfaces: RS485/CAN/USB
Yes
Monitor : RF/WIFI/GPRS
Optional
Warranty: 5 years / 10 years
Yes / Optional
Certificates
CE, IEC62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, C10/C11，EN50549, CEI 0-21, CEI 0-16, IEC62116, IEC61727, AS/NZS
4777 , G98, TOR Erzeuger
Why choose it
Why choose Sunwe


WHAT CAN WE OFFER YOU
Ⅰ：Thrustworthy: Sunwe is the authorized distributor of Growatt products
Ⅱ: Service: Professional sales technician, providing you with One to One service and fast reponse.
Ⅲ: Fast delivery,: Sunwe keeps stock for most main power products such us 10kw hybrid inverter: SPH10000TL3 BH-UP, 5kw hybrid inverter: SPH5000TL3 BH-UP. to ensure the delivery time within 7 days.
Ⅳ: Warranty guaranteed: Sunwe guarantees you that each Growatt inverter you purchase from us will be provided with 5 years standard warranty.
Ⅴ: One-stop solution: We can also provide free design of the entire solar system that you need for your houses or projects.
Ⅵ: Cheaper shipping: We keep highly cooperated relationship with DHL, UPS, Fedex, SF Express to make sure you pay less shipping cost if you only need one or two pieces.
