Aperçu /Produits/outre de l'inverseur de grille/cpu control technology power ups 4000w solar inverter pure sine 48v with a built-in charger

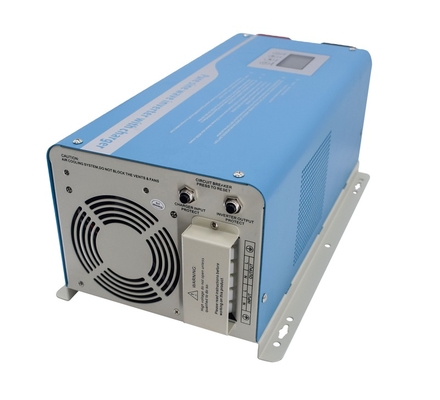

cpu control technology power ups 4000w solar inverter pure sine 48v with a built-in charger

1 Set
MOQ
$464.00(1 - 9 Sets) $445.00(10 - 29 Sets) $428.00(30 - 99 Sets) $409.00(>=100 Sets)
Prix
cpu control technology power ups 4000w solar inverter pure sine 48v with a built-in charger
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Network: Double CPU intelligent control technology
Customized support: RS232
Model Number: YK-W94000-48
Type: DC/AC Inverters, Tower type
Output Type: Single
Output Current: 18.1A
Output Frequency: 50HZ/60HZ
Size: 555*307*189MM
Weight: 23KG
Certificate: CE
Product name: solar power ups 4000w inverter pure sine 48v with a built-in charger
Warranty: 1 Year
Output waveform: Pure Sine Wave
Display: LCD Display
Input voltage range: 85-138VAC;170-275VAC
OEM: Support
Package: Carton Packaging
Protection: Short Circuit Protection
Feature: CPU Control Technology
Informations de base
Certification: CE
Model Number: YK-W94000-48
Conditions de paiement et expédition
Packaging Details: Neutral carton----solar power ups 4000w inverter pure sine 48v with a built-in charger
Supply Ability: 1000 Set/Sets per Month
Description de produit
Product Features
1. Double CPU intelligent control technology, excellent performance 2. RS232 communication port （optional） 3. Pure sine wave AC output and be adapt to all kinds of loads; 4. Low frequency transformer, input and output isolated design 5. Three working mode(the grid mode/energy-saving mode/battery mode could be set,) application flexible
6. With built in battery charger Max 30A,charge current/battery type could be set, convenient and practical
7. Intelligent fan control, safe and reliable 8. Horizontal type novel design, easy installment, space saving 9. LCD display equipment parameter in real-time, operation status be clear at a glance 10. Output overload, short circuit protection, various of automatic protection and alarm warning
Product Details
Product Specifications
Model
YK-W9
1000
YK-W9
2000
YK-W9
3000
YK-W9
4000
YK-W9
5000
YK-W9
6000
YK-W9
8000
Rated power
1000W
2000W
3000W
4000W
5000W
6000W
8000W
Input voltage range
DC12V
DC24V
DC48V
DC12V
DC24V
DC48V
DC24V
DC48V
DC24V
DC48V
DC24V
DC48V
DC96V
DC48V
DC96V
DC48V
DC96V
Battery charge current
30A（default）can be set (0A 5A 10A 15A 20A 25A 30A)
Output voltage range
AC110V; AC220V;±5%( Inverter mode)
Output wave from
Pure sine wave
Output switching time
＜10ms( typical load)
Efficiency
＞85%（80% Resistance load）
Protection
overvoltage protection / lowvoltage protection, overload protection, short circuit protection, overtemperature protection, etc.
Dimension(mm)
486*247*179
486*247*179
555*307*189
555*307*189
555*307*189
653*332*260
653*332*260
Net weight(Kg)
11
14
16
23
26
30
53
